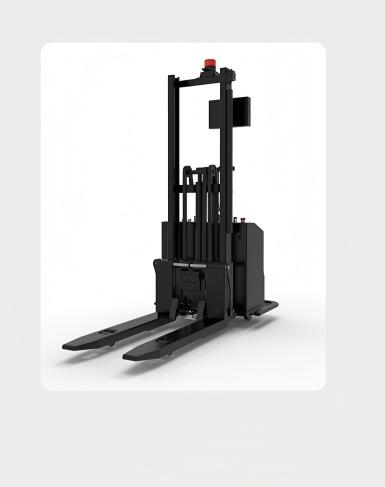

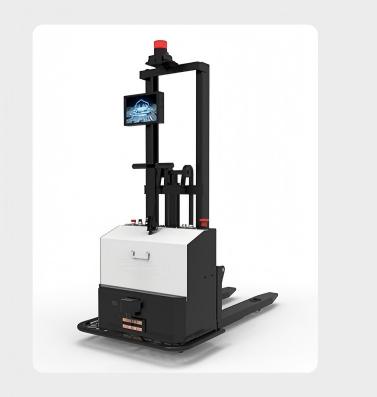

Automated Guided Forklift 002
(19)
Drive ModeElectronic Steering & AC Servo Motor
Operation ModePedestrian & Automatic
Max. Load Capacity500KG
Load Center Distance500mm
Total Weight (with Battery)240KG
Overall Dimensions1738mm(L) × 858mm(W) × 1910mm(H)
Fork Dimensions1000mm / 136mm / 60mm
Fork Outer Width540mm
Fork Lifting Height1384mm
Fork Minimum Height84mm
Mast Max. Height (in Operation)1910mm
Ground Clearance (Wheelbase Center)40mm
Turning Radius1425mm
Tire Type (Front/Rear/Auxiliary)Polyurethane Wheels
Front Tire Size165mm × 39.5mm
Rear Tire Size80mm × 70mm
Auxiliary Tire Size75mm × 40mm
Wheel Quantity (Front/Rear, x=Drive Wheel)2/2/2
Balance Wheel Track493mm
Load Wheel Track400mm
1000*1200 (1200 )Aisle Width (Pallet 1000×1200, 1200 Cross Forks)1450mm
Travel Speed (Loaded/Unloaded)2.8km/h
Lifting Speed (Loaded/Unloaded)100mm/s
Lowering Speed (Loaded/Unloaded)50mm/s
Safety EdgeFront Bumper Safety Contact Edge
Service BrakeElectronic Brake
2Drive Motor Power ×2 1kW
Lifting Motor Power0.8kW
Battery Voltage48V
Battery Weight26×4KG
DIN 12053Driver Ear Noise Level (Compliant with DIN 12053)<70dB(A)
Charging MethodAutomatic Charging / Manual Direct Charging
