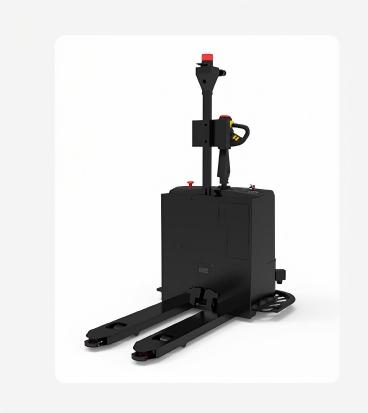

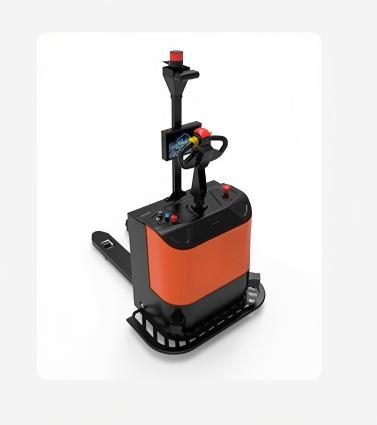

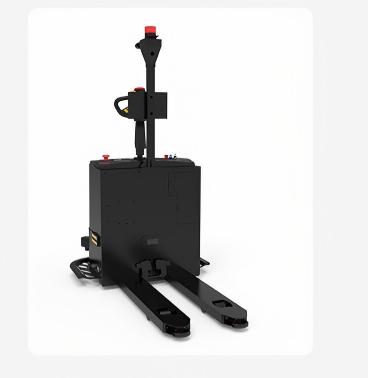

Automated Guided Forklift 001
(19)
Drive modeElectronic steering & AC servo motor
Manual operation modeJoystick control
Max. load capacity1500KG
Charging time1H
Total weight (with battery)450KG
Overall dimensions1729mm(L) × 1126mm(W) × 1967mm(H)
Fork dimensions1019mm / 180mm / 226mm
Fork spread (outer)570mm
Fork lifting height120mm
Fork minimum height85mm
Wheelbase1115mm
Ground clearance42MM
Turning radius1500MM
Tire type (front/rear/auxiliary)Polyurethane wheels
Load wheel size82mm × 96mm
Drive wheel size230mm × 75mm
Auxiliary wheel size100mm × 40mm
Wheel quantity (load/drive/auxiliary)4 / 1(x+2)
Wheel track (drive side)518mm
Wheel track (load wheels)515mm
1000*1200 (1200 )Aisle width (pallet 1000×1200, 1200 cross forks)2176mm
800*1200 (1200 )Aisle width (pallet 800×1200, 1200 along forks)2103mm
Travel speed (loaded/unloaded)0.8m/s, 1m/s
Lifting speed (loaded/unloaded)40mm/s, 40mm/s
Lowering speed (loaded/unloaded)70mm/s, 60mm/s
Safety edgeFront bumper safety contact edge
Brake typeElectromagnetic brake
Battery typeLiFePO4 battery 48V/30AH
Rated power95W
Rated working time (unloaded)8H
Rated working time (loaded)6H
DIN 12053Driver ear noise level (compliant with DIN 12053)<70DB(A)
Charging methodManual battery swap / automatic charging
